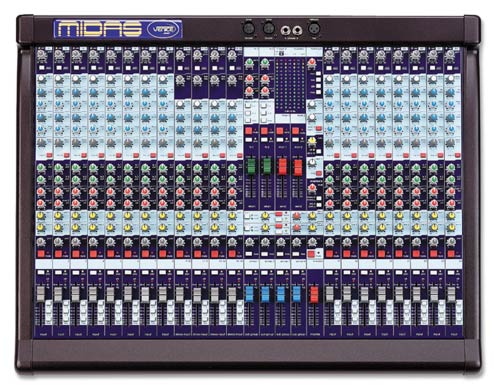

MIDAS VENICE 240 PERFORMANCE SPECIFICATIONS
Inputs (total) 38
Mono-Inputs (Mic/Line) with Inserts 16
Stereo-Line/Mono-Mic-Input Channels 4/4
Stereo-Effect-Returns (Line) 4
Stereo-Tape-Return (Line) 1 left/right
Busses 15
Subgroups 4
Aux Pre-Fader (Monitor) 2
Aux Post-Fader (Effects) 2
Aux switchable Pre/Post-Fader 2
Master L/R 2
Mono-PFL 1
Stereo-AFL 2
Outputs
Subgroups (with Inserts) 4 impedanced balanced 1/4 inch jacks
Aux Pre-Fader (Monitor) 2 XLR (balanced)
Aux Post-Fader (Effects) 2 impedanced balanced 1/4 inch jacks
Aux switchable Pre/Post-Fader 2 XLR (balanced)
Master (with Inserts) 2 XLR (balanced)
Master B Out 2 XLR (balanced)
(switchable Mono/Stereo, pre-post Fader)
Tape Send (Recording) 1 Stereo (Phono)
Direct Outputs (1/4 inch Jack) 8 16 24
Stereo-Headphones 2 Stereo-1/4 inch jack
Stereo-Speakers 2 impedanced balanced 1/4 inch jacks
Additional Features
Connector for desk lamps 2 x 12V/5W (4-Pin XLR)
Input Impedance
Mic 2k½ Balanced
Line 20k½ Balanced
Input Gain
Mic Continuously variable 0dB to +60dB
Line (Mono Channell) Continuously variable -20dB to +40dB
Line (Stereo Channel) Continuously variable -10dB to +20dB
Line Level Inputs 0dB
Maximum Input Level
Microphone and Line +22dBu
Line Level Inputs (Mono) +42dBu
Line Level Inputs (Stereo) +22dBu
Equaliser Mono Channel
Hi Pass Filter 2nd order Butterworth, 80Hz
Treble +/-15dB at 12kHz (Shelv)
Hi Mid Continuously variable 100Hz to 2kHz (1 Oct) +/-15dB
Lo Mid Continuously variable 400Hz to 8kHz (1 Oct) +/-15dB
Bass + /-15dB at 80Hz (Shelv)
Equaliser Stereo Channel
Treble +/-15dB at 12kHz (Shelv)
Hi Mid 3kHz (1,4 Oct) +/-15dB
Lo Mid 300Hz (1,4 Oct) +/-15dB
Bass +/-15dB at 80Hz (Shelv)
Maximum Output Level
Master Outputs +25dBu
Line Outputs +22dBu
Headphones +22dBu / 600½
Nominal Signal Level
Microphone - 60dBu to 0dBu
Line 0dBu
