| The THOR Database System is a scaleable, open, parallel-processing, object relational database management
system (ORDBMS) for the client-server environment. THOR is a complete system, comprising the THOR SQL objectManager™ software – an SQL implementation designed to run on parallel shared-nothing hardware – and the THOR MPP Data Server™ hardware – simple, off-the-shelf hardware optimized to provide a cost-effective platform for the SQL objectManager software. SQL objectManager is the only advanced scaleable open parallel object/relational DBMS optimized to run on the parallel hardware architecture. The SQL objectManager software supports the Sybase Open Server and the Open Database Connectivity (ODBC) standard. SQL objectManager emulates TRANSACT-SQL, the Sybase dialect of SQL, making it compatible with numerous existing applications and application generators. |  |
| • Unsurpassed price/performance and function, easily scales from gigabytes to terabytes | • Native parallel object support and advanced query optimization | • Parallel-everything architecture – LOAD, DUMP, SORT, JOIN, INSERT, UPDATE, etc. |
| • SYBASE-compatible - all interfaces and tools can run without disruption | • Open system integration, ODBC- and SQL-compatible | • Hitachi quality, service and outstanding customer support |
| SQL Supported | Standard SQL and SYBASE TRANSACT-SQL – Supports stored procedures and triggers– Full set of system administration tools |
| Database integrity | Row-level concurrency control – Supports ACID principles |
| Data types | Supports all SYBASE SQL Server data types, large objects support |
| Security control | Login and password – GRANT/REVOKE privileges – Views |
| Backup/recovery | Full transaction logging (logical-mirrored) – Transaction roll-back and two-phase commit – Backups (DUMP) on databases – Automatic recovery – RAID level 1 |
| Networks supported | All networks supported by SYBASE Open Server – Ethernet (TCP/IP) – Novell NetWare LAN Workplace – Microsoft LANManager – IBM LAN Server |
| SYBASE Open Server Interface | Supports SYBASE Data Workbench, APT Workbench, Report Workbench – Supports SYBASE and Microsoft SQL Server-compatible 4GLs, gateways, and utilities |
| Network Gateway Requirements | UNIX – SCSI-II Adapter |
The THOR MPP Data Server is tuned for VLDB uses. It uses leading edge PowerPC technology with Ultra-SCSI disk drives. The modular packaging lets you easily scale your implementation to meet your present and future VLDB data processing requirements.

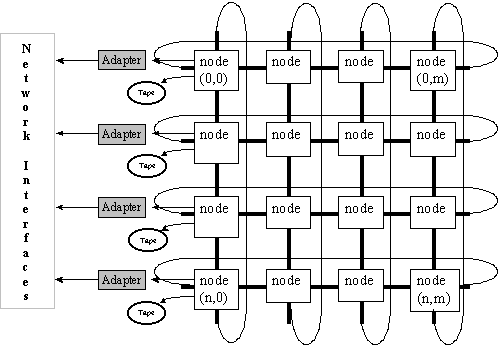

The THOR MPP Data Server hardware comprises a matrix of data processing nodes. Each node has its own dedicated processor, memory and disks. The nodes are linked together in a toroidal mesh, so the machine is capable of achieving a high degree of parallelism in searching, sorting and updating large amounts of data with extremely low latency.
A THOR module contains four nodes; a tower contains six modules, or 24 nodes. In THOR's initial release, up to 12 towers or 288 nodes can be connected. The system shown above displays four modules, or 16 nodes, while also illustrating the hardware's scalability.
| HW Specifications | Module (four nodes) | Tower (24 nodes) |
| Model Number | HI64 | HI512 |
| Memory | 256 MB - 2 GB, ECC protected | 1.5-12 GB, ECC protected |
| Total disk space | 67.2 GB | 403.2 GB |
| Network gateway connections | up to 4 Fast-Wide SCSI-II | up to 24 Fast Wide SCSI-II |
| Processors | 4 of each of the following: | 24 of each of the following: |
| ||
| I/O | Node to Node communications:
External Peripherals:
Internal Peripherals:
Diagnostic Ports:
| |
THOR, THOR MPP Data Server, and THOR SQL objectManager are trademarks of Hitachi Computer Products (America), Inc. All other trademarks are the property of their respective owners.
