Mac OS X:

OS 10.1.5 shown

Setting up Network Preferences for Rooftop Service

1. To begin setting up your sonic.net connection, click on the Apple menu, and select "System Preferences..."



2. Once the System Preferences window loads, click on "Network" to load the Network Preferences.

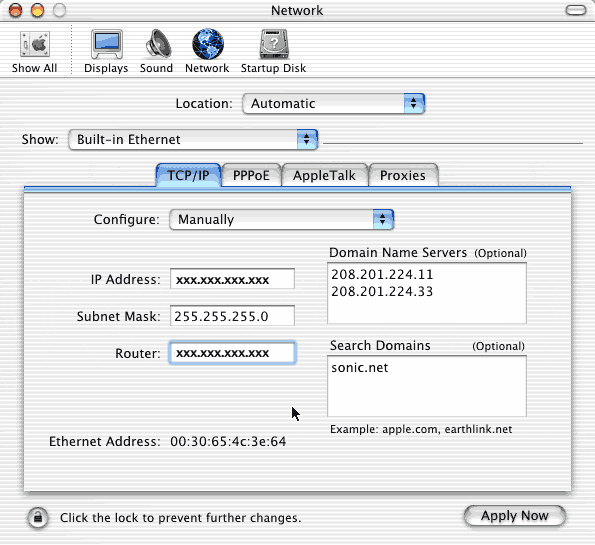

3. In the Network Preferences pane, set location to "Automatic," and set Show to "Built-In Ethernet."
   Set Configure to "Manually."
   Enter your IP address in the IP Address field in the format xxx.xxx.xxx.xxx. For example, if your IP address is 123.12.312.31, you would enter it 123.12.312.31.
   The Subnet Mask should be 255.255.255.0.
   The Router is your Default Gateway Address.
   The Domain Name Servers are 208.201.224.11 and 208.201.224.33.
   The "Search Domain" should be "sonic.net."
   Except for the Domain Name Server addresses, your screen may look a little different from this image. Next, click on the PPPoE tab.



4. In the PPPoE tab, nothing should be checked. Rooftop through Sonic.net does not use PPP over Ethernet. Next, Click on the Appletalk tab.



5. Appletalk is not necessary to connect to Sonic.net. Leave it off, or turn it on, it does not matter. If you regularly remotely connect to an Appletalk network, you should contact the adminstrator of that network for the appropriate settings. Click on the Proxies tab.



6. By default, the proxy settings tab is blank. Sonic.net does not require proxy settings. Leave these blank.



   Once you've completed all the settings, click on "Apply Now" to enable the changes.
