Soundscape Product Information

B&K
Installation Audio Components

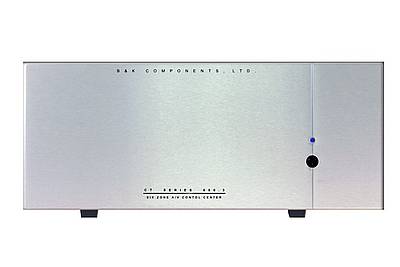

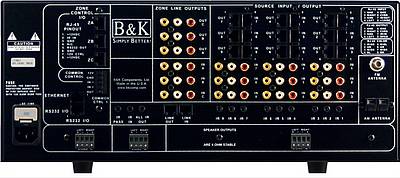

CT300.3

The CT600.3 & CT600.1 have 6 fully independent A/V stereo zones; the CT300.3 has 3 fully independent A/V stereo zones

FEATURES:

• Number of Zones 3 Stereo / 6 Mono
• AM/ FM Tuners 3
• Power Rating @ 8 ohms (4 ohms stable all Ch driven)
• Zone A-C / 55 Watts Per Ch
• Signal To Noise Ratio 89 dB
• Audio Frequency Response 20 Hz- 10 MHz
• Audio Source Inputs 9 (RCA)
• Audio Source Buffered Outputs 9 (RCA)
• Audio Buffered Output Impedance 220ohms
• Video Freq. Response – Composite 20 Hz- 10 MHz
• Video Source Input Impedance 75 ohms
• Video Source Inputs 9 Composite
• Video Source Buffered Outputs 9 Composite
• Video Buffered Output Impedance 75 ohms
• Dedicated Zone AV Inputs 3 (RCA)
• Dedicated Zone Line AV Outputs 3 (RCA)
• Source IR Flashers Outputs 9 (1/8")
• Plug IR Flasher Voltage 5V with 475 in series
• Control IR/RS232/Ethernet (pending)
• All IR Out 1 (1/8" plug)
• RS232 Device Control Yes - Triggerable by IR Keypad
• Data Inputs 3 12 Volt
• Control / Status Outputs 3 Common
• Control Inputs 1 Common
• Control Outputs 1
• Whole House Presets 100
• Dimensions in Inches (Cutout Dimensions) (Width/Height/Depth) 17 (17 1/8) 7 1/2 (7 5/8) 15 1/2 (16 5/8)
• Weight 55lbs
