Soundscape Product Information

B&K
Installation Audio Components

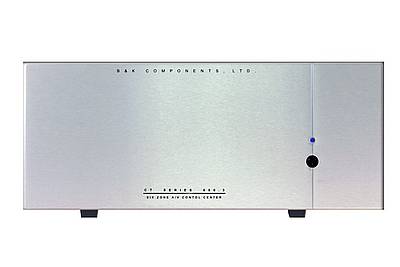

CT600.3

The CT600.3 & CT600.1 have 6 fully independent A/V stereo zones.

FEATURES:

• Number of Zones 6 stereo / 12 mono
• AM/ FM Tuners 1
• Power Rating @ 8 ohms (4 ohms stable all Ch driven) Zones A-F / 55 Watts Per Ch
• Signal To Noise Ratio 89 dB
• Audio Frequency Response 20 Hz- 20 kHz
• Audio Source Inputs 9 (RCA)
• Audio Source Buffered Outputs 9 (RCA)
• Audio Buffered Output Impedance 220 ohms
• Video Freq. Response – Composite 20 Hz-10 MHz
• Video Source Input Impedance 75 ohms
• Video Source Inputs 9
• Composite Video Source Buffered
• Outputs 9 Composite Video Buffered
• Output Impedance 75 ohms
• Dedicated Zone AV Inputs 6 (RCA)
• Dedicated Zone Line AV Outputs 6 (RCA)
• Source IR Flashers Outputs 9 (1/8" plug)
• IR Flasher Voltage 5V with 475 ohms in series
• Control IR/RS232/Ethernet (pending)
• All IR Out 1 (1/8" plug) RS232
• Device Control Yes - Triggerable by IR
• Keypad Data Inputs 6 12 Volt
• Control / Status Outputs 6
• Common Control Inputs 2
• Common Control Outputs 2
• Whole House Presets 100
• Dimensions in Inches 17"(Wide) x 7 1/2 (High) x 15 1/2 (Depth)
• Weight 55 lbs.
