Soundscape Product Listing
Moving Coil Cartridges
It's nice to be right. Watch News Story.

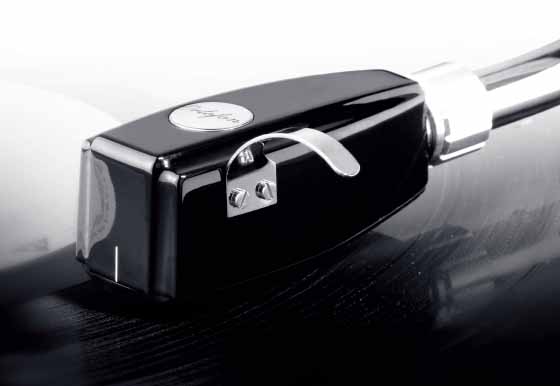

SPU Cartridges
Call for
Pricing and availability!
see pdf
Trade-in Values
Low-Output Moving Coil Cartridges
Close to Ortofon's BEST MC, utilizing
Replicant Stylus 100.
Soundscape price $3,750.00

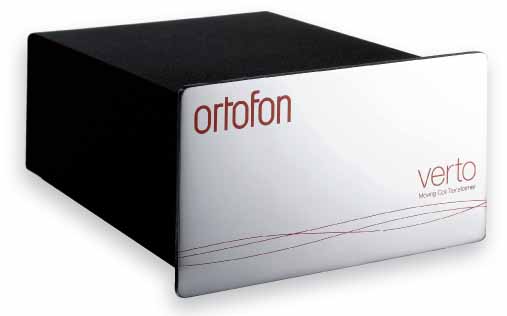

Matching Transformer for Ortofon Windfeld or
any state-of-the-art Moving Coil Cartridges
Ortofon Verto $949
Ortofon Jubilee
Nude Shibata
Ortofon Jubilee $2,350.00
Matching Transformer for MC- Rohmann or any state-of-the-art
Moving Coil Cartridges
Ortofon Verto $949
Ortofon MC-Rohmann
The Rohmann cartridge has been developed by Ortofon to celebrate the memory of the late chairman of the company. It has been designed to bring much of the excellence of the MC7500 to a wider audience. It is a serious product commemorating a serious man.
Specs:.25mV, MC, Orto-Line diamond stylus, 20~55,000 Hz, 2.5g tracking. 99.999% pure silver armature windings in the carbon fiber armature. Cartridge body milled from solid aluminum.
Ortofon MC-Rohmann $1,800.00
Matching Transformer for MC- Rohmann or any state-of-the-art
Moving Coil Cartridges
Ortofon Verto $949
Ortofon Kontrapunkt Series
Nude Fritz Gyger 80 Diamond
Ortofon Kontrapunkt "C"
$1900
Ortofon Kontrapunkt "B"
$1500
Ortofon Kontrapunkt"H"
$1200
Ortofon Kontrapunkt "A"
$950
Ortofon Verto $949
Ortofon Rondo
Ortofon Rondo Bronze
$1050
Ortofon Rondo Blue
$800
Ortofon Rondo Red
$550
Matching Transformer for any state-of-the-art Moving Coil Cartridges
Ortofon Verto $949
Ortofon Salsa
Specs:.
- Output voltage at 1000 Hz, 5cm/sec. 380 µV
- Channel balance at 1 kHz < 1 dB
- Channel separation at 1 kHz > 25 dB
- Channel separation at 15 kHz > 15 dB
- Frequency range 20-35.000 Hz
- Frequency response 20-20.000 Hz +/- 2 dB
- FIM distortion at recommended tracking force, DIN 45.542 < 1%
- Tracking ability at 315Hz at recommended tracking force > 80 µm
- Compliance, dynamic, lateral 15 µm/mN
- Stylus type Super Fine Line
- Stylus tip radius r/R 5/40 µm
- Equivalent stylus tip mass 0,40 mg
- Tracking force range 2,0-2,4 g (20-24 mN)
- Tracking force, recommended 2,2 g (22 mN)
- Tracking angle 20°
- Internal impedance, DC resistance 7 Ohm
- Recommended load impedance > 20 Ohm
- Cartridge body material Noryl
- Cartridge colour Orange transparent
- Cartridge weight 7 g.
Ortofon Salsa $375.00
Ortofon Samba
Specs:.
- Output voltage at 1000 Hz, 5cm/sec. 300 µV
- Channel balance at 1 kHz < 1 dB
- Channel separation at 1 kHz > 25 dB
- Channel separation at 15 kHz > 15 dB
- Frequency range 20-30.000 Hz
- Frequency response 20-20.000 Hz +/- 2 dB
- FIM distortion at recommended tracking force, DIN 45.542 < 1%
- Tracking ability at 315Hz at recommended tracking force > 70 µm
- Compliance, dynamic, lateral 14 µm/mN
- Stylus type Nude elliptical
- Stylus tip radius r/R 8/18 µm
- Equivalent stylus tip mass 0,50 mg
- Tracking force range 1,3-1,8 g (13-18 mN)
- Tracking force, recommended 1,5 g (15 mN)
- Tracking angle 20° Internal impedance, DC resistance 6 Ohm
- Recommended load impedance > 10 Ohm
- Cartridge body material Noryl
- Cartridge colour Yellow transparent
- Cartridge weight 7 g
Ortofon Salsa $285
Ortofon Tango
Specs:.
- Output voltage at 1000 Hz, 5cm/sec. 0.5 mV
- Channel balance at 1 kHz < 1dB
- Channel separation at 1 kHz > 23 dB
- Channel separation at 15 kHz > 15 dB
- Frequency range 20-25.000 Hz
- Frequency response 20-20.000 Hz + / - 2 dB
- FIM distortion at recommended tracking force, DIN 45.542 < 1%
- Tracking ability at 315Hz at recommended tracking force > 65 µm
- Compliance, dynamic, lateral 13 µm/mN Stylus type
- Elliptical Stylus tip radius r/R 8/18 µm
- Equivalent stylus tip mass 0,65 mg
- Tracking force range 2,3-2,7 g (23-27 mN)
- Tracking force, recommended 2,5 g (25 mN)
- Tracking angle 20° Internal impedance, DC resistance 10 Ohm
- Recommended load impedance > 20 Ohm
- Cartridge body material Noryl
- Cartridge colour Blue transparant
- Cartridge weight 4,1 g
Ortofon Salsa $225
High-Output Moving Coil Cartridges
Ortofon X-5 MC
Ortofon X-5MC $400
Ortofon X-1 MCP
Ortofon X-1MCP $175
Ortofon MC-3 Turbo
Check out the reviews in:
Hi-Fi Choice Rec., October,1996.
3.3 mV, MC, Fine-Line nude stylus, Aluminum cantilever, 20~25,000 Hz, 1.8-2.2g
tracking force, Noryl body, 4.1g.
Ortofon MC-3 Turbo $275
Ortofon MC-1 Turbo
Check out the reviews in:
Hi-Fi World Best Buy, 1995. & Hi-Fi World group test, March, 1994, by Eric Braithwaite.
"There was a real taste of top-quality MC air around soloists and an enveloping ambience."
"The Ortofon produced a sensation of being very rhythmical."
"Woodwinds and lower strings were large and rich."
"Good value in terms of liveliness."
3.3 mV, MC, Elliptical stylus, Aluminum cantilever, 20~22,000 Hz, 1.8-2.2g tracking force, Noryl body, 4.1g.
Ortofon MC-1 Turbo $175
Ortofon
Tonearms

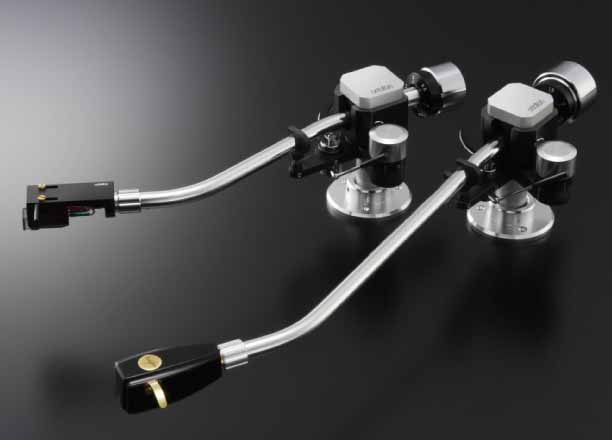

New Tonearms from Ortofon:
AS-212S 9" Static Tonearm Soundscape Price $1,649.00
AS-309S 12" Static Tonearm Soundscape Price $,749.00
RS-212d 9" Dynamic Tonearm Soundscape Price $2,349.00
RS-309D 12" Dynamic Tonearm Soundscape Price $2,449.00
