Soundscape Product
Russound Custom Installation Products

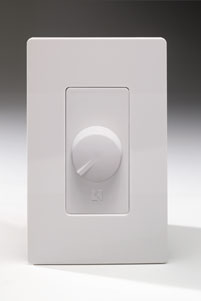

ALTx-2D UltraMatch™ Volume Control with Decora® insert and
Cover Plate
Soundscape Price: TBA per box of 12
*Including domestic Freight when purchased with system
The ALTx-2D is
a wall-mounted, Decora® style, speaker-level, UltraMatch™ volume control. It
connects between the speaker outputs of an amplifier or receiver and a pair
of speakers. The 1x setting allows the volume control to be used as a standard
non-impedance matching control. The 2x, 4x, and 8x settings allow it to be used
as an UltraMatch™ control. The UltraMatch™ volume control provides a method
of matching the minimum output impedance of an amplifier or receiver, in addition
to attenuating the volume. This eliminates the need for a speaker selector or
other impedance matching equipment. The volume is adjusted by adjusting the
amplifier signal output of the volume control to the speakers.
All Russound volume controls are manufactured using a high quality autoformer
design which provides long life, excellent frequency response, no heat build-up,
and maximum power transfer from the amplifier to the speakers. All Russound
volume controls conform to UL Standard 1492 First Addition, and for Canada,
certified to CSA Standard 22.2 No. 1-M94. This certification assures that Russound
volume controls are designed and tested for safety.
Features
- Decora® wall plate
- Selectable autoformer-based impedance matching (up to 8x)
- Impedance-matching or Non Impedance-matching
- Configurable Removable input/output connectors
- Isolated left and right channel grounds 12 Step
- Attenuation including "OFF"
- Available in White, Bone, Almond, Brown, and Black
Specifications
- Power Handling: 42 watts RMS per channel (126 watts PEAK)
- Frequency Response: 20 Hz to 20 KHz Min.
- Speaker Impedance: 4 ohm
- Impedance Matching Type: Autoformer-Based
- Max. Wire Gauge: 12 awg
- Volume Control: 42 db attenuation, 12 position
- Weight: 1 lb
- Dimensions (In-Wall): 1.75"W x 2.5"H x 2.5"D (45 x 64 x 64mm)
