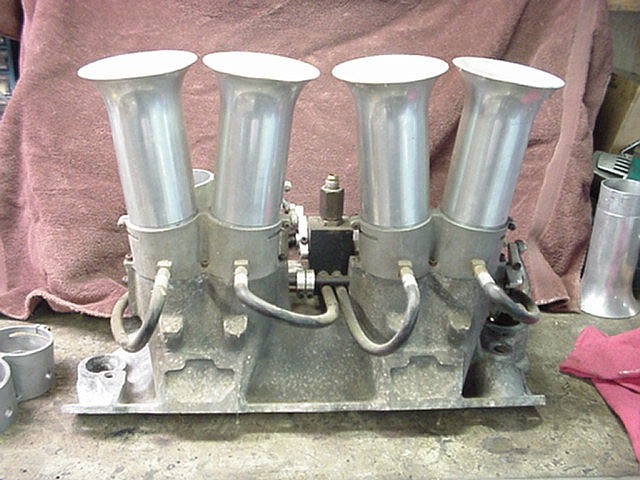

Driver side view of the unit.  At first I did not realize that the manifold is made out of magnesium.  I had thought about welding in bungs for different things but that went out the window when I determined the manifold's material.  The original alcohol injectors and metering valve can be seen.

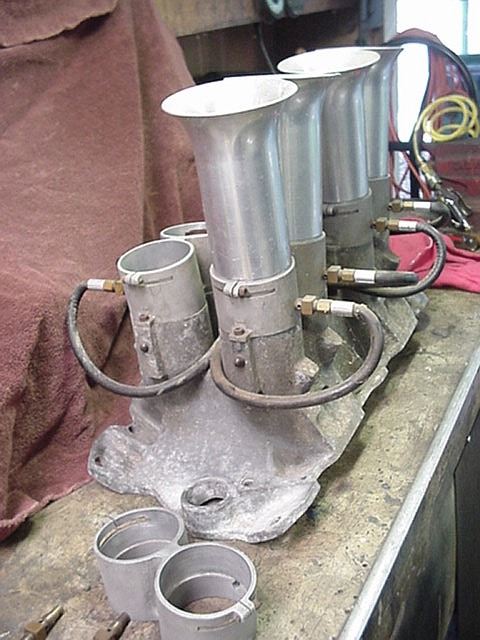

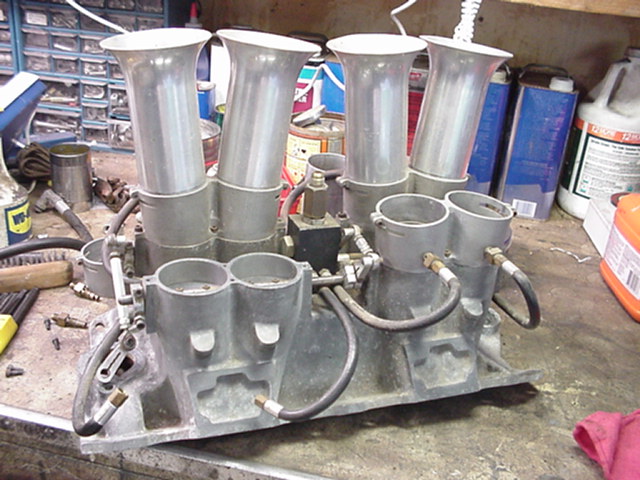

A few of the stacks removed along with one of the injector housings.

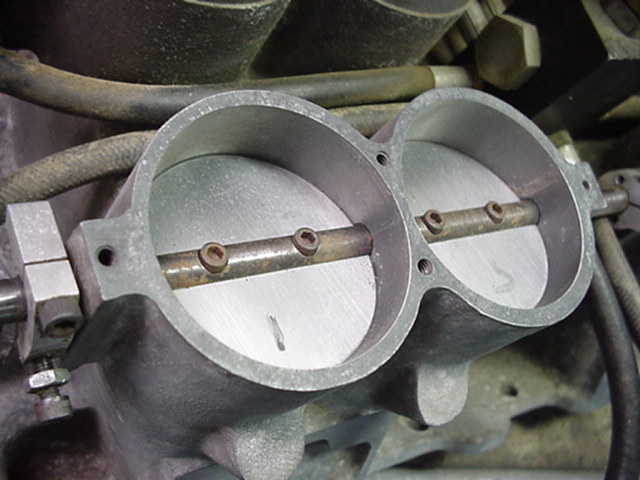

First look at those small 2.5" diameter butterflies.  Also the bosses that I hope to mount the injectors into.

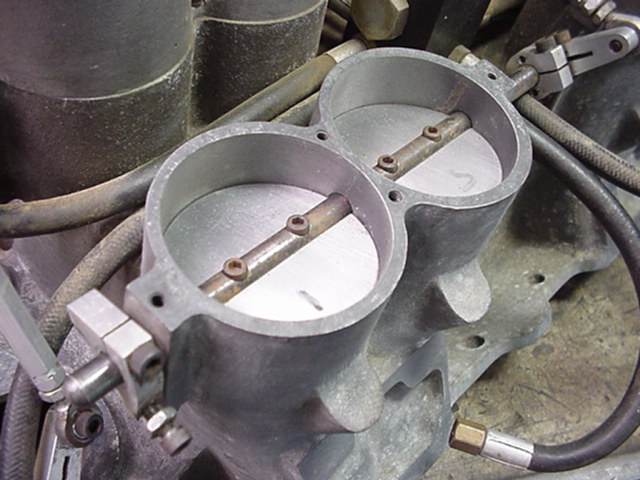

Hopefully the throttle response will be something more than idle to full power !  Wide open throttle should be fun with over 39 square inches of throttle plates.

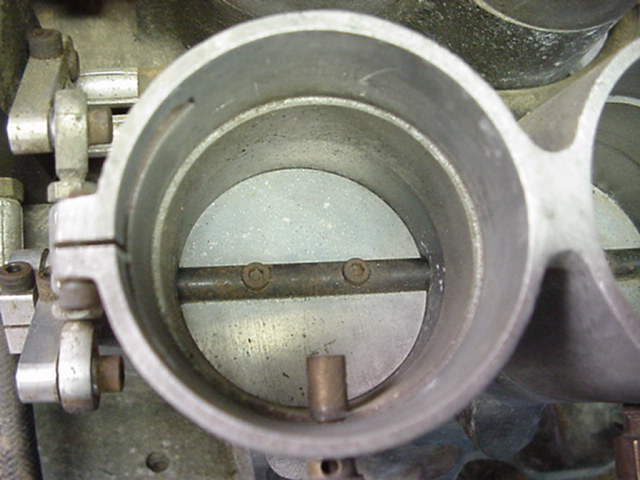

A look down one of the throats.  You can see the nozzle located above the butterfly.

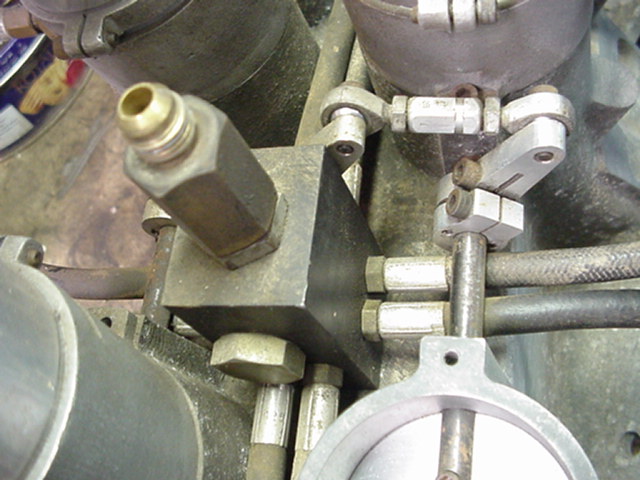

The original fuel control valve. The metering pill is located below the AN-6 input fitting.
That magnesium needs a little cleaning.

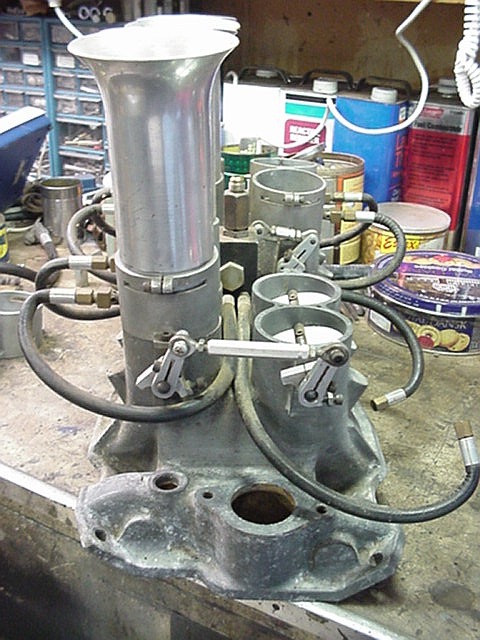

The rear view.  Would like to mount the TPS to the rear of the driver side throttle shaft.  Hopefully there will be enough room between it and distributor.

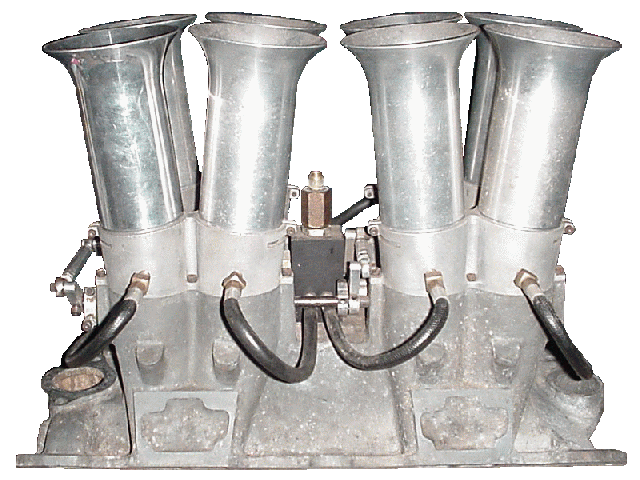

A front view.
