Illustration 1: Original SWTL launchers from QEX magazine and 64 feet of AWG #28 single conductor magnet wire line.
Experiment 9
This Experiment measures a 64 foot length of single conductor AWG#28 wire, fixtured using the original SWTL launchers previously described in QEX magazine. Illustration 1 shows the Port1 end.

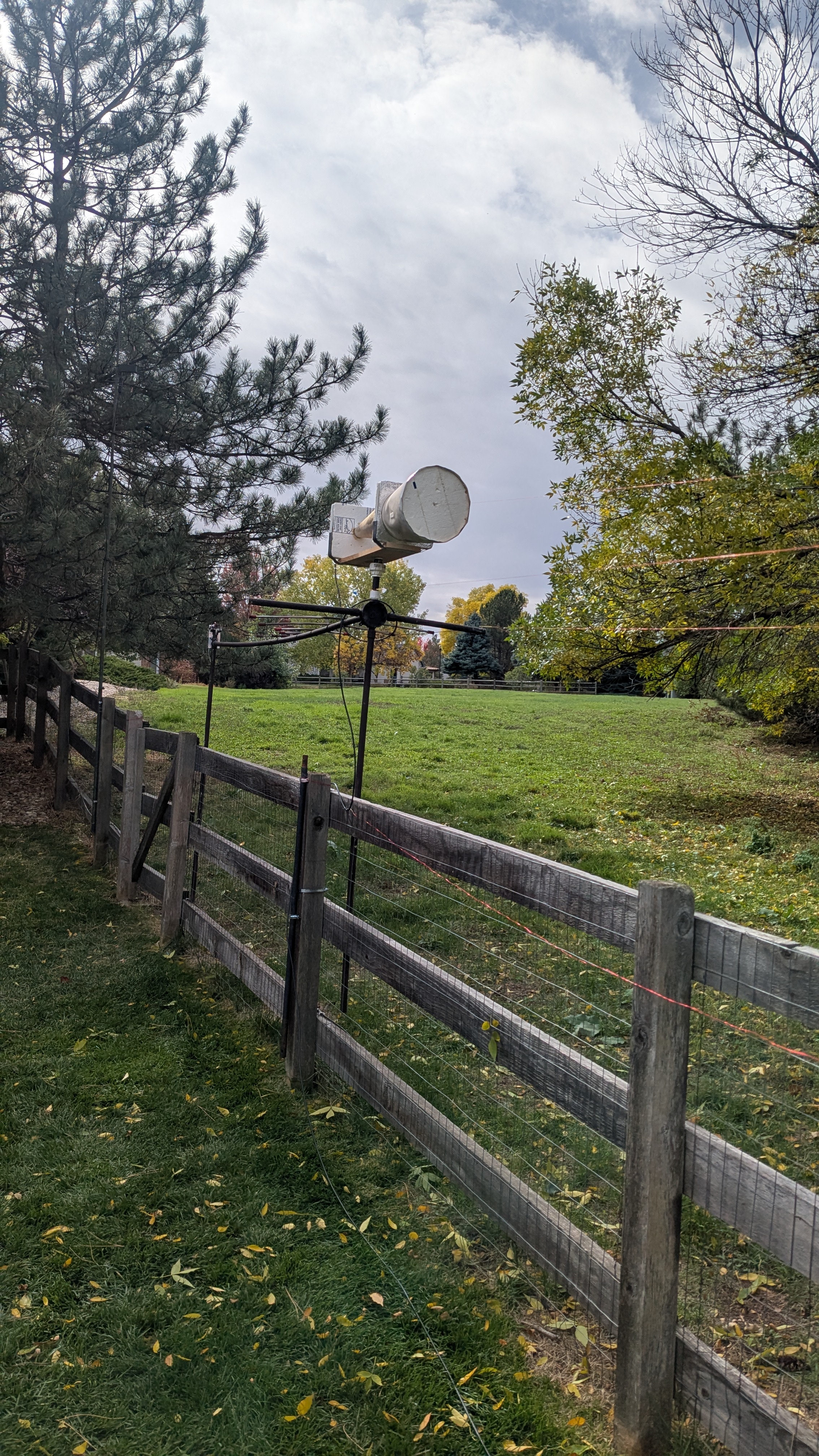

Illustration 1:
Original SWTL launchers from QEX magazine and 64 feet of AWG #28
single conductor magnet wire line.

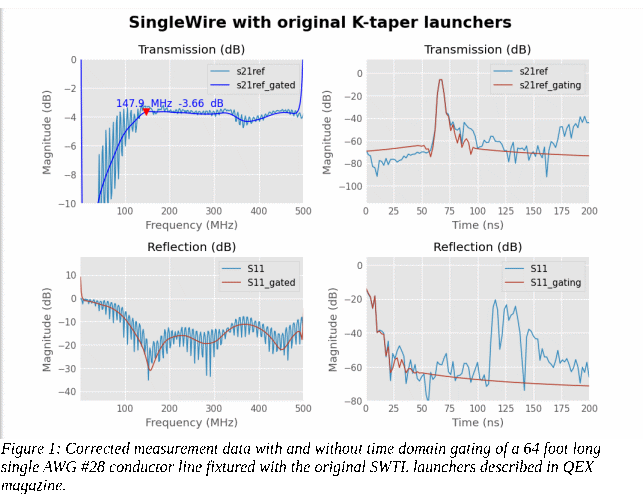

Time domain gating has been applied around Port1 for reflection and the main energy at Port 2 as shown in Figure 1.
