Spectr@Litetm IGU




skylight Spectr@Litetm IGU is a unique glazing material which incorperates the spectral qualities of holographic diffraction gratings with the very high, thermal performance of triple layered insulated glazing units

Spectr@Litetm IGU is a very high quality insulated glazing unit which is produced under certified manufacturing conditions. All glazing units come with a limited warrantee.

Spectr@Litetm IGU is ideally suited for high profile architectural installations where the daily and seasonally interaction of light and color are desirable attributes to a buildings exterior or interior. Primary applications to date include skylight glazing, curtainwall glazing, windows, interior and exterior partitions, handrail glazing panals, as well as elements in architectonic art.

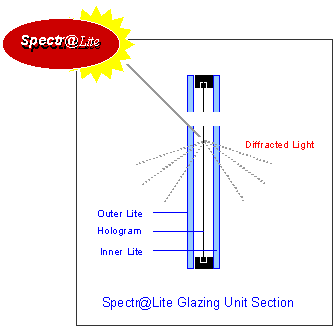

diagram
CUSTOM
HOLOGRAPHIC
PATTERNS
AVAILABLE

Spectr@Litetm IGU modules come in 36" widths and are available in any length up to 120". Special sizes are available upon request.
windows


Spectr@Litetm IGU
Holographic Diffraction Grating Insulated Glazing Units
(Patent #6002521)


Spectr@Litetm IGU Performance Data

Glass Type Unit Thickness Transmittance U-Value Shading Coeff. BTU/H/sqft
Code   Visable Solar






SL-50-S 1" 50% 50% .48 .66 120






SL-48-S 1-1/16" 48% 46% .46 .56 120

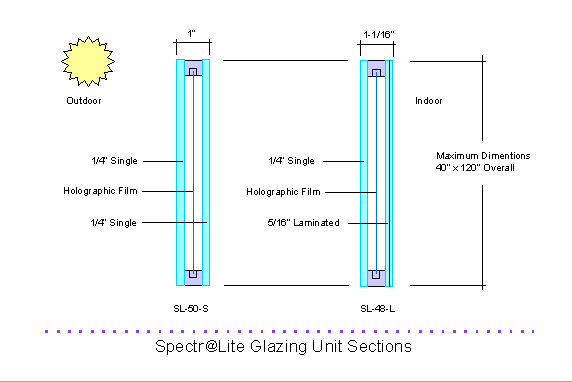

Diagram

SL-50-S Both lites are clear, single 1/4" tempered, unless otherwise specified, with a 1/2" air space.
Primarily used in vertical applications such as curtain wall and window applications


SL-48-L Outer lite is clear, single 1/4" tempered, inner lite is clear 5/16" thick tempered laminated, with 1/2" air space.
Primarily used for overhead applications such as skylights and sloped glazing.




For prices, specifications, samples, technical assistance and sales representatives nearest you, please contact:
Thinking Lightly Inc. 5076 Hall Rd. Santa Rosa, California 95401 Phone: 707-546-0664 Fax: 707-546-0661 thinklt@sonic.net




Spectr@Litetm IGU Low-E
Holographic Diffraction Grating Insulated Glazing Units
(Patent #6002521)


Spectr@Litetm IGU Performance Data*

Glass Type Unit Thickness Transmittance U-Value Shading Coeff. BTU/H/sqft
Code   Visable Solar UV






SL-60-S 1" 50%   50%   .50 .33 .49 120






SL-58-L 1-1/16" 48%   46%   .48 .32 .48 120

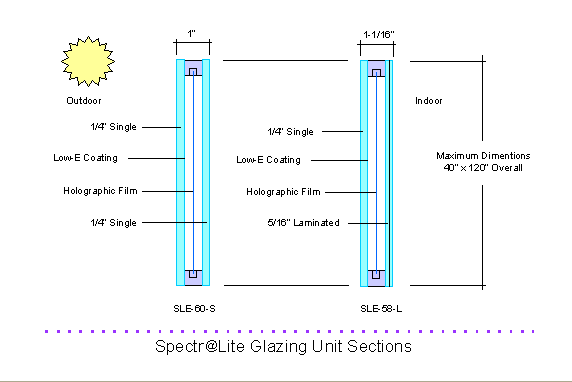

Diagram

SL-60-S Outer lite is Low-E, single 1/4" tempered, unless otherwise specified, with a 1/2" air space.
Primarily used in vertical applications such as curtain wall and window applications.


SL-58-L Outer lite is Low-E, single 1/4" tempered, with 1/2" air space. Inner lite is clear 5/16" thick tempered laminated.
Primarily used for overhead applications such as skylights and sloped glazing.


*
 Performance data is estimated, pending independent lab testing.




For prices, specifications, samples, technical assistance and sales representatives nearest you, please contact:
Thinking Lightly Inc. 5076 Hall Rd. Santa Rosa, California 95401 Phone: 707-546-0664 Fax: 707-546-0661 thinklt@sonic.net

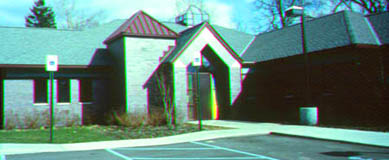

Examples
