..... GARAGE DOORS 9 ePARTS for AutoCAD Architecture 2007 and up
IMPERIAL UNITS - RESIDENTIAL GARAGE DOORS
PRODUCT OVERVIEW

Contents:
Greetings ---- Product Features ---- Purchase

Open in Separate Window

1Greetings .1-1 GARAGE DOORS 9 ePARTS OVERVIEW
Introduction

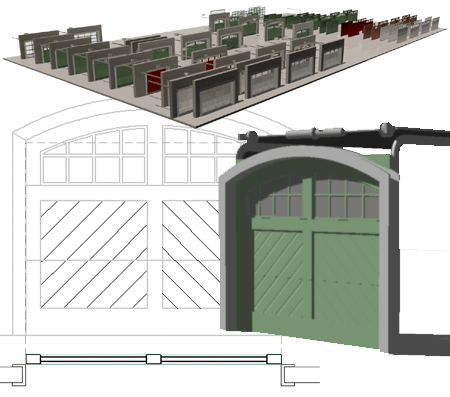

Thank you for your interest in the GARAGE DOORS 9 eParts product by ARCHIdigm.  This product consists of over 30 Garage Door Styles.  Each Door uses a highly customized Curtain Wall Style to depict the Door Panel with folds, recessed panels and glazing.  Each door comes with inside and outside trim that has adjustable profiles.  This eParts product consists mainly of standard residential roll-up doors but includes options and samples for double hinged and arched openings (see right).  Knowledgeable ACA users can use the solutions exemplified in this product to create numerous unique custom designs.

This product contains one downloadable drawing file configured for use in ADT 2007, ACA 2008 and up.  Users can install this product through the Content Browser as a new Catalog or place the drawing file anywhere on their machine or network drive and add Objects to a custom palette.

Note:
This is not a stand-alone software product; it is a library of Object Styles for use in Autodesk's Architectural Desktop 2007 and AutoCAD Architecture 2008-2011 CAD program.



2Product Features 2-1 GARAGE DOORS 9 ePARTS OVERVIEW
The Levels of Detail

All ePart Objects have been optimized for work using the AutoCAD Architectural 2007- 2010 "Aec model (imperal - ctb).dwt" and "Aec model (imperal - stb).dwt" default template files.

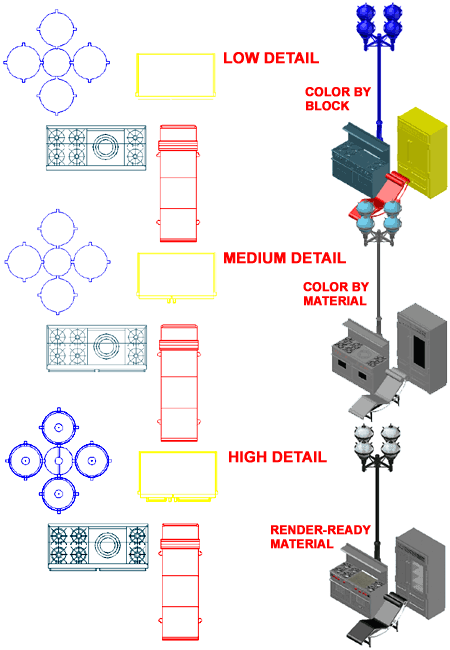

Illustrated to the right is an example of how the three primary Display Representations, Low, Medium and High Detail, affect ePart Objects.  Most ePart Objects include an AecPolygon Style set to Mask background information.  This mask can be turned off if desired.

Low Detail
The Low Detail Display Representation will affect the Plan and Model Display Representations.  In Plan View linework has been simplified to a little as possible while conveying the basic information of the Object.  In Model View this Detail Display Representation will show Objects in Colors you specify by direct assignment or by Layer; i.e., the Objects are set to "ByBlock".

Medium Detail
The Medium Detail Display Representation will affect the Plan and Model Display Representations.  In Plan View you will see either see the same amount of detail as under Low Detail or High Detail depending on what we considered the better choice.  In Model View Colors are determined by the Material assignment and do not use image maps.

High Detail
The High Detail Display Representation will also affect the Plan and Model Display Representations.  In Plan View all linework is displayed..  In Model View Objects will display Materials by their image map assignment ready for Rendering.

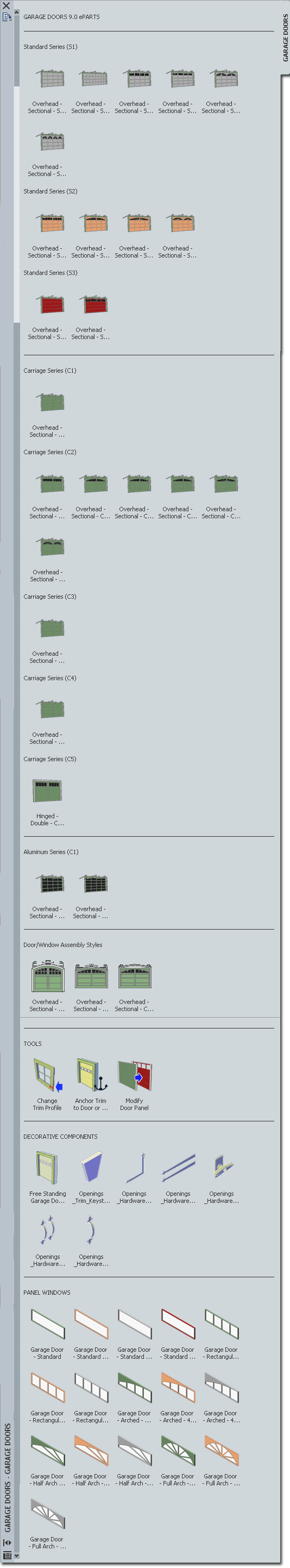

Content in this Package: (see Example Palette)

R=Rectangular, A=Arch, H=Half, F=Full, S=Sunray, V=Vertical muntins, M=horizontal Muntins, W=Window

Sectional Doors (Door Objects)
Hinged - Double - C5 - RVW - 2x4 - Trim
Overhead - Sectional - C1 - 2x4 - Trim
Overhead - Sectional - C2 - HASW - 2x4 - Trim
Overhead - Sectional - C2 - HAVW - 2x4 - DWA
Overhead - Sectional - C2 - HAVW - 2x4 - Trim
Overhead - Sectional - C2 - RVW - 2x4 - Trim
Overhead - Sectional - C2A - HAVW - 2x4 - DWA
Overhead - Sectional - C2B - HAVW - 2x4 - Trim
Overhead - Sectional - C2BX - HAVW - 2x4 - Trim
Overhead - Sectional - C3 - 2x4 - Trim
Overhead - Sectional - C4 - 2x4 - Trim
Overhead - Sectional - C5 - HAVMW - 2x3 - DWA
Overhead - Sectional - G1 - 4x4 - Trim
Overhead - Sectional - G1 - 4x5 - Trim
Overhead - Sectional - S1 - 4x4 - Trim
Overhead - Sectional - S1 - 8x4 - Trim
Overhead - Sectional - S1 - FASW - 4x4 - Trim
Overhead - Sectional - S1 - HASW - 4x4 - Trim
Overhead - Sectional - S1 - RW - 4x4 - Trim
Overhead - Sectional - S1 - RW - 4x5 - Trim
Overhead - Sectional - S2 - FASW - 4x4 - Trim
Overhead - Sectional - S2 - HASW - 4x4 - Trim
Overhead - Sectional - S2 - HAVW - 4x4 - Trim
Overhead - Sectional - S2 - RVW - 4x4 - Trim
Overhead - Sectional - S3 - 1x4 - Trim
Overhead - Sectional - S3 - RW - 1x4 - Trim

Sectional Doors (Door/Window Assembly Objects)
Openings_Hinged_Double_C4_RVW
Overhead - Sectional - C2 - HAVW - 2x4 - Trim - Arched Square
Overhead - Sectional - C2A - HAVW - 2x4 - Trim - Arched
Overhead - Sectional - C6 - HAVMW - 2x3 - Trim - Arched

Each Door is based on a custom Door Window Assembly Style that can be used as a template for other custom solutions.

3Purchase 3-1 GARAGE DOORS 9 ePARTS OVERVIEW
Purchase Online, Get Website + Password and Download

Use

This product comes as a stand-alone drawing (.dwg) file for Architectural Desktop 2007 and AutoCAD Architecture 2008 and up.  Instructions for adding to custom tool palettes are included.  A Content Catalog with Categories is included with this product.

Buy

Garage Doors is now included with Doors. Purchase the latest Version of the Doors Product to acquire this version as well.  Newest version includes all older versions.
FYI A list of all our products can be found at www.archidigm.com/classroom

Contact:
kits@archidigm.com

Installation:
To use the included Content Browser Catalog, installation must be done according to the instructions included with purchase.  However, after installation, you can use the Move feature of the Content Browser to relocate this product.
