In-Ceiling Speakers
In-Ceiling Speakers

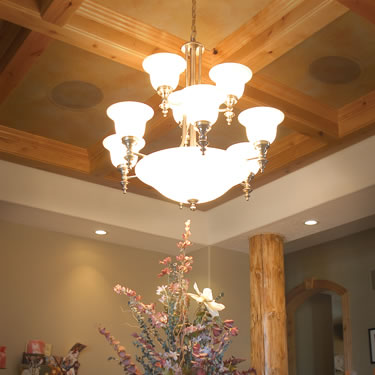

Round shaped architectural speakers are most of the time referred to as “in-ceiling speakers”. This is because these are usually installed into the ceiling to blend in with other typical ceiling fixtures like recess can lights, ceiling fans, smoke detectors, etc.
Most in-ceiling speakers are of the “coaxial” design meaning the tweeter (high frequency) is located on the middle of the woofer (low or mid frequencies) instead of a dust cap. This design delivers a uniform sound that is perfect for speakers placed above the listening area.
All TruAudio in-ceiling design Frames and grills can be painted to match rooms décor High-grade crossover design and components. Their deep frame enhances bass reproduction.
CA-8
Soundscape Price: $800/pair
- 2 way in-ceiling design
- Frame and grill can be painted to match rooms décor
- High-grade crossover design and components
- Proprietary "VIC" tweeter bridge improving tweeter frequencies
- 8" Aluminum woofer provides deep bass
- Aluminum tweeter provides clean, crisp highs
- Speaker Type: In-ceiling, 2 way
- Woofer: 8" aluminum
- Tweeter: 1" aluminum, swivel
- Power: 5 - 150 watts
- Impedance: 4 or 8 ohm, switchable
- Frequency Response: 31 - 20k Hz.
- Sensitivity: 92 dB
- EQ Adjustments: Tweeter & Woofer +3, 0, -3
- Grill: EZGrill, Micromesh
- Finish dimensions: 11 1/8" diameter, 4 1/2" deep
- Cutout dimensions: 9 3/4" diameter
CF-8
Soundscape Price: $650/pair
- 2 way in-ceiling design
- Frame and grill can be painted to match rooms décor
- High-grade crossover design and components
- Proprietary "VIC" tweeter bridge improving tweeter frequencies
- Woven Carbon fiber woofer for great mid-bass
- Tweeter it built from high-grade titanium
- Adjustable treble and bass controls
- Speaker Type: In-ceiling, 2 way
- Woofer: 8" woven carbon fiber
- Tweeter: 1" titanium, swivel
- Power: 5 - 125 watts
- Impedance: 4 or 8 ohm, switchable
- Frequency Response: 35 - 20k Hz.
- Sensitivity: 91 dB
- EQ Adjustments: Tweeter & Woofer +3, 0, -3
- Grill: EZGrill, Micromesh
- Finish dimensions: 11 1/8" diameter, 4 1/2" deep
- Cutout dimensions: 9 3/4" diameter
CPI-8
Soundscape Price: $500/pair
- 2 way in-ceiling design Frame and grill can be painted to match rooms décor
- High-grade crossover design and components
- Deep frame enhances bass reproduction
- 8" Injected polypropylene woofer for added bass
- Adjustable treble control
- Speaker Type: In-ceiling, 2 way
- Woofer: 8" injected polypropylene
- Tweeter: 1" silk, swivel
- Power: 5 - 125 watt
- Impedance: 8 ohm
- Frequency Response: 42 - 20k Hz.
- Sensitivity: 90 dB
- EQ Adjustments: Tweeter +3, 0, -3
- Grill: EZGrill, Micromesh
- Finish dimensions: 11 1/8" diameter, 4 3/8" deep
- Cutout dimensions: 9 3/4" diameter
CP-8
Soundscape Price: $400/pair
- 2 way in-ceiling design
- Frame and grill can be painted to match rooms décor
- High-grade crossover design and components
- 8" woofer provides a great amount of bass
- Large 1" swivel tweeter for custom installations
- Speaker Type: In-ceiling, 2 way
- Woofer: 8" polypropylene
- Tweeter: 1" silk, swivel
- Power: 5 - 100 watts Impedance: 8 ohm
- Frequency Response: 42 - 20k Hz.
- Sensitivity: 90 dB Grill: Micromesh
- Finish dimensions: 11 1/8" diameter, 3 1/2" deep
- Cutout dimensions: 9 3/4" diameter
CA-6
Soundscape Price: $600/pair
- LC-6 2 way in-ceiling design
- Frame and grill can be painted to match rooms décor
- Good quality product for a tight budget
- Good quality woofer and tweeter
- Speaker Type: In-ceiling, 2 way
- Woofer: 6 1/2" aluminum
- Tweeter: 3/4" aluminum, swivel
- Power: 5 - 125 watts
- Impedance: 4 or 8 ohm, switchable
- Frequency Response: 44 - 20k Hz.
- Sensitivity: 92 dB
- EQ Adjustments: Tweeter & Woofer +3, 0, -3
- Grill: EZGrill, Micromesh
- Finish dimensions: 9 1/2" diameter, 4" deep
- Cutout dimensions: 8 1/8" diameter
CF-6
Soundscape Price: $475/pair
- 2 way in-ceiling design
- Frame and grill can be painted to match rooms décor
- High-grade crossover design and components
- Proprietary "VIC" tweeter bridge improving tweeter frequencies
- Woven Carbon fiber woofer for great mid-bass
- Tweeter it built from high-grade titanium
- Adjustable treble and bass controls
- Speaker Type: In-ceiling, 2 way
- Woofer: 6 1/2" injected polypropylene
- Tweeter: 3/4" silk, swivel
- Power: 5 - 100 watts
- Impedance: 8 ohm
- Frequency Response: 52 - 20k Hz.
- Sensitivity: 90 dB
- EQ Adjustments: Tweeter +3, 0, -3
- Grill: EZGrill, Micromesh
- Finish dimensions: 9 1/2" diameter, 3 3/4" deep
- Cutout dimensions: 8 1/8" diameter
CPI-6
Soundscape Price: $375/pair
- 2 way in-ceiling design
- Frame and grill can be painted to match rooms décor
- High-grade crossover design and components
- 8" woofer provides a great amount of bass
- Large 1" swivel tweeter for custom installations
- Speaker Type: In-ceiling, 2 way Woofer: 6 1/2" injected polypropylene Tweeter: 3/4" silk, swivel Power: 5 - 100 watts Impedance: 8 ohm Frequency Response: 52 - 20k Hz. Sensitivity: 90 dB EQ Adjustments: Tweeter +3, 0, -3 Grill: EZGrill, Micromesh Finish dimensions: 9 1/2" diameter, 3 3/4" deep Cutout dimensions: 8 1/8" diameter
CP-6
Soundscape Price: $300/pair
- 2 way in-ceiling design Frame and grill can be painted to match rooms décor
- High-grade crossover design and components
- Good quality woofer and tweeter
- Swivel tweeter for custom installations
- Speaker Type: In-ceiling, 2 way
- Woofer: 6 1/2" polypropylene
- Tweeter: 3/4" silk, swivel
- Power: 5 - 80 watts
- Impedance: 8 ohm
- Frequency Response: 52 - 20k Hz.
- Sensitivity: 90 dB Grill: Micromesh
- Finish dimensions: 9 1/2" diameter, 3 1/8" deep
- Cutout dimensions: 8 1/8" diameter
LC-6
Soundscape Price: $150/pair
- LC-6 2 way in-ceiling design
- Frame and grill can be painted to match rooms décor
- Good quality product for a tight budget
- Good quality woofer and tweeter
- Woofer: 6 1/2" polypropylene
- Tweeter: 3/4" mylar
- Power: 5 - 60 watts Impedance: 8 ohm
- Frequency Response: 55 - 20k Hz.
- Sensitivity: 88 dB Grill: Micromesh
- Finish dimensions: 9 1/2" diameter, 3" deep
- Cutout dimensions: 8 1/8" diameter
CA-5
Soundscape Price: $330/pair
- 2 way in-ceiling design
- Frame and grill can be painted to match rooms décor
- High-grade crossover design and components
- Small compact size to fit in tight spaces
- Aluminum material which offers great high and lows
- Speaker Type: In-ceiling, 2 way
- Woofer: 5 1/4" aluminum
- Tweeter: 3/4" aluminum, swivel Power: 5 - 65 watts
- Impedance: 8 ohm
- Frequency Response: 60 - 20k Hz.
- Sensitivity: 91 dB Grill: Micromesh
- Finish dimensions: 8 5/8" diameter, 3" deep
- Cutout dimensions: 7" diameter
CA-5
Soundscape Price: $230/pair
- 2 way in-ceiling design
- Frame and grill can be painted to match rooms décor
- High-grade crossover design and components
- Small compact size to fit in tight spaces
- Woofer: 5 1/4" polypropylene
- Tweeter: 3/4" silk, swivel
- Power: 5 - 60 watts Impedance: 8 ohm
- Frequency Response: 65 - 20k Hz.
- Sensitivity: 90 dB
- Grill: Micromesh
- Finish dimensions: 8 5/8" diameter, 3" deep
- Cutout dimensions: 7" diameter
DVA-8
Soundscape Price: $250/each
- Stereo sound from one speaker Frame and grill can be painted to match rooms décor
- 8" aluminum woofer for great bass
- Proprietary "VIC" tweeter bridge improving tweeter frequencies
- Aluminum material which offers great high and lows
- Adjustable tweeter and woofer controls
- Speaker Type: In-ceiling, stereo speaker
- Woofer: 8" aluminum
- Tweeters: Dual 3/4" aluminum, swivel
- Power: 5 - 125 watts
- Impedance: 8 ohm
- Frequency Response: 46 - 20k Hz. Sensitivity: 91 dB
- EQ Adjustments: Tweeter +3, 0, -3
- Grill: EZGrill, Micromesh
- Finish dimensions: 11 1/8" diameter, 4 1/2" deep
- Cutout dimensions: 9 3/4" diameter
DVA-6
Soundscape Price: $150/each
- Stereo sound from one speaker
- Frame and grill can be painted to match rooms décor
- Small size for smaller area
- Proprietary "VIC" tweeter bridge improving tweeter frequencies
- Dual swivel tweeters for easy placement
- Speaker Type: In-ceiling, stereo speaker
- Woofer: 6 1/2" polypropylene
- Tweeters: Dual 3/4" silk, swivel
- Power: 5 - 80 watts Impedance: 8 ohm
- Frequency Response: 60 - 20k Hz.
- Sensitivity: 89 dB
- Grill: EZGrill, Micromesh
- Finish dimensions: 9 1/2" diameter, 3 3/4" deep
- Cutout dimensions: 8 1/8" diameter
Speaker Accessories
All Rough-in Rings are $15.00 each
Back Boxes for 6 /12" or 8" Ceiling Speakers are $22.00 each
MDF Enclosures for In-wall speakers are $60.00 each
MDF Enclosures for SUB-88 are $80.00 each
Acoustic Foam for in-wall speakers are $60/pair
